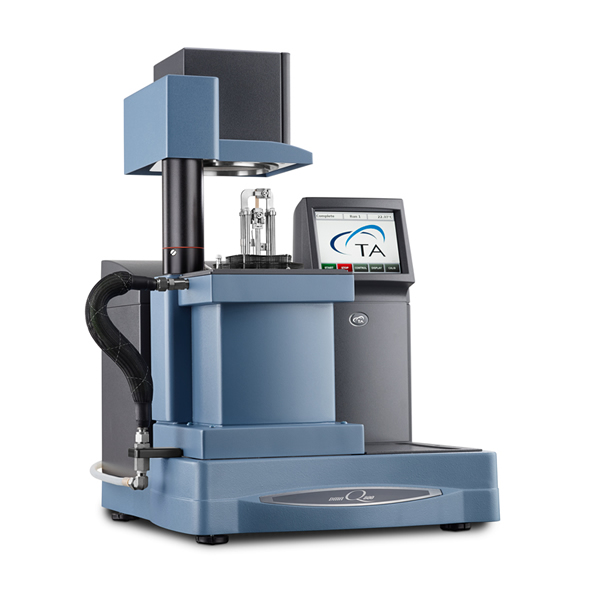

Dynamic Mechanical Analyzer (DMA)
Topic: Reliability measurement setups
TA Q800
Specifications:
- Maximum Force 18 N
- Minimum Force 0.0001 N
- Force Resolution 0.00001 N
- Strain Resolution 1 nanometer
- Modulus Range 103 to 3×1012 PA
- Modulus Precision ±1%TanA
- Sensitivity 0.0001TanA
- Resolution 0.00001
- Frequency Range 0.01 to 200 Hz
- Dynamic Sample Deformation Range ±0.5 to 10,000 pm
- Temperature Range -150 to 600 °C
- Heating Rate 0.1 to 20 ‘C/min
- Cooling Rate 0.1 to 10 °C/min
- Isothermal Stability ±0.1 °C
- Time/Temperature Superposition Yes
Repository data
| Type: | lab infrastructure |
|---|---|
| Date: | March 2026 |
| Contact: | Willem van Driel |
